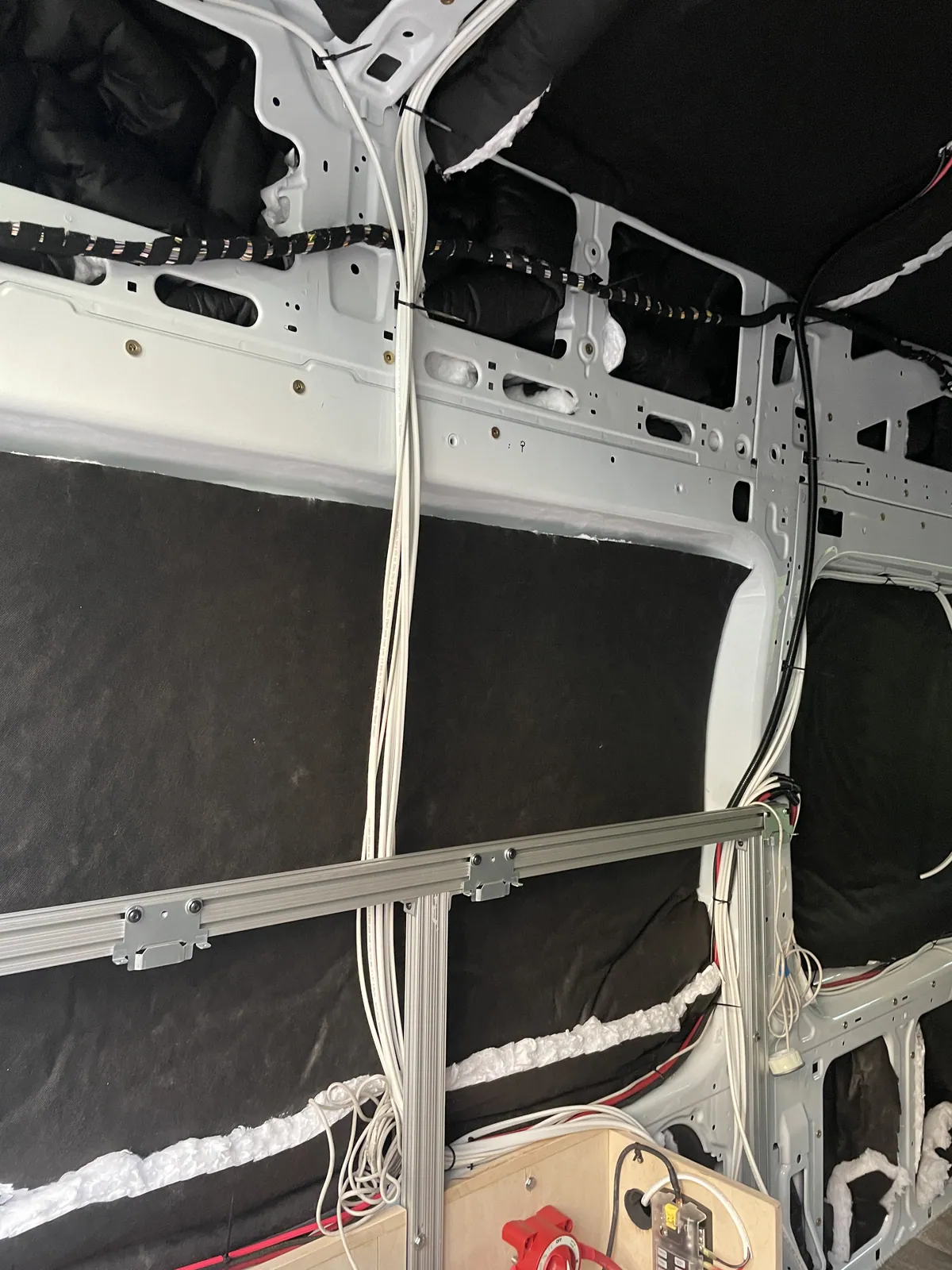

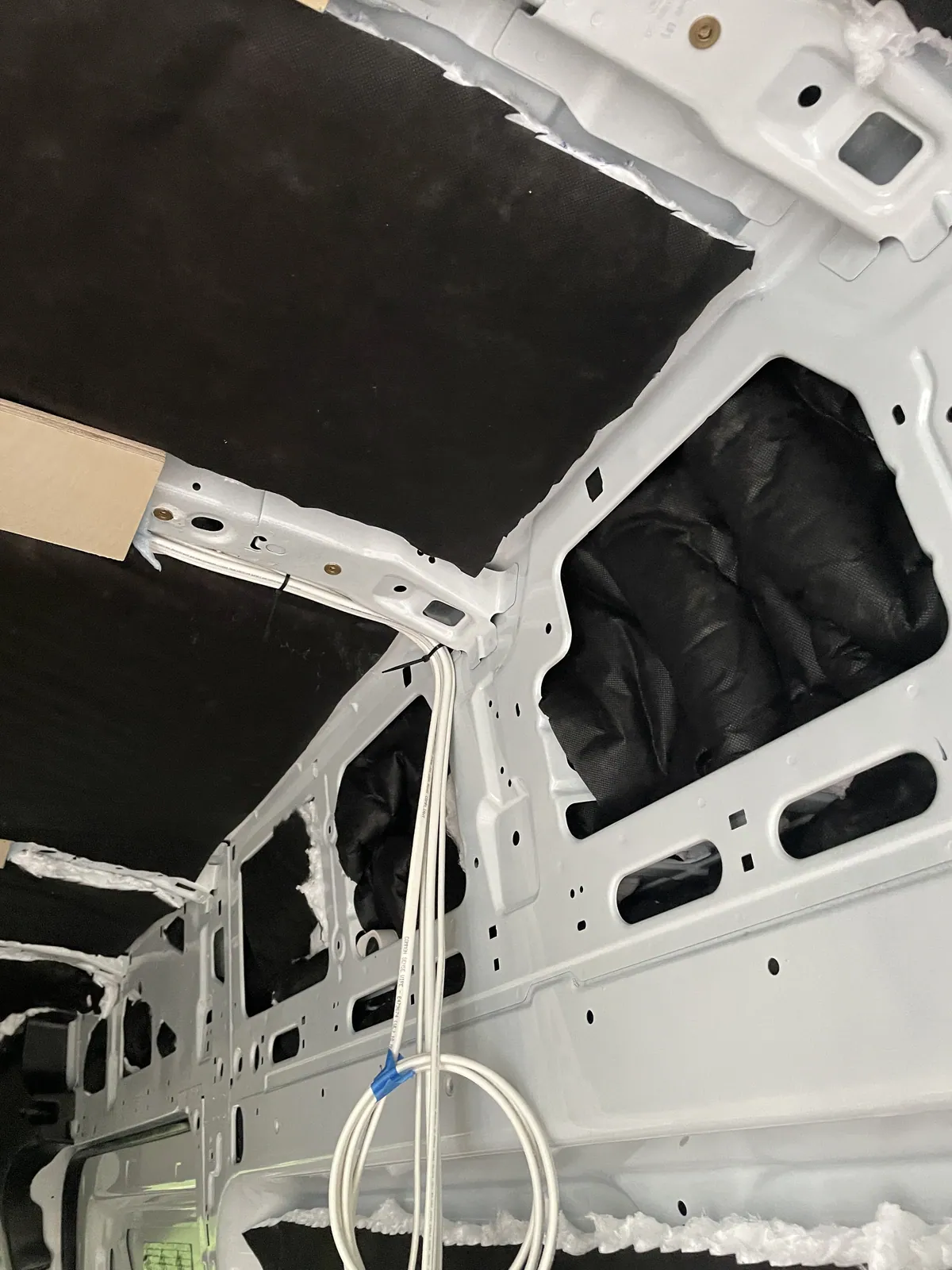

Electricals

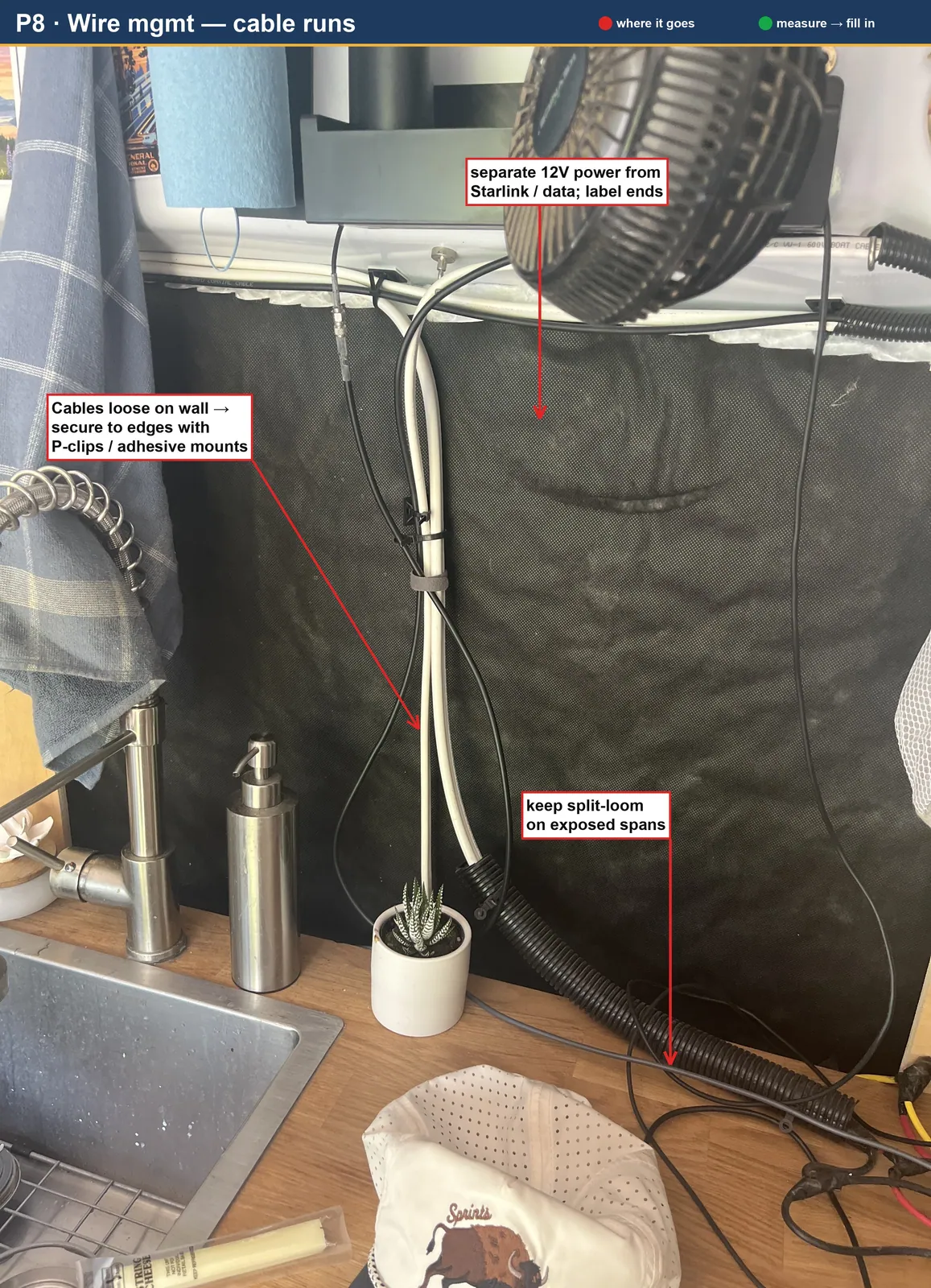

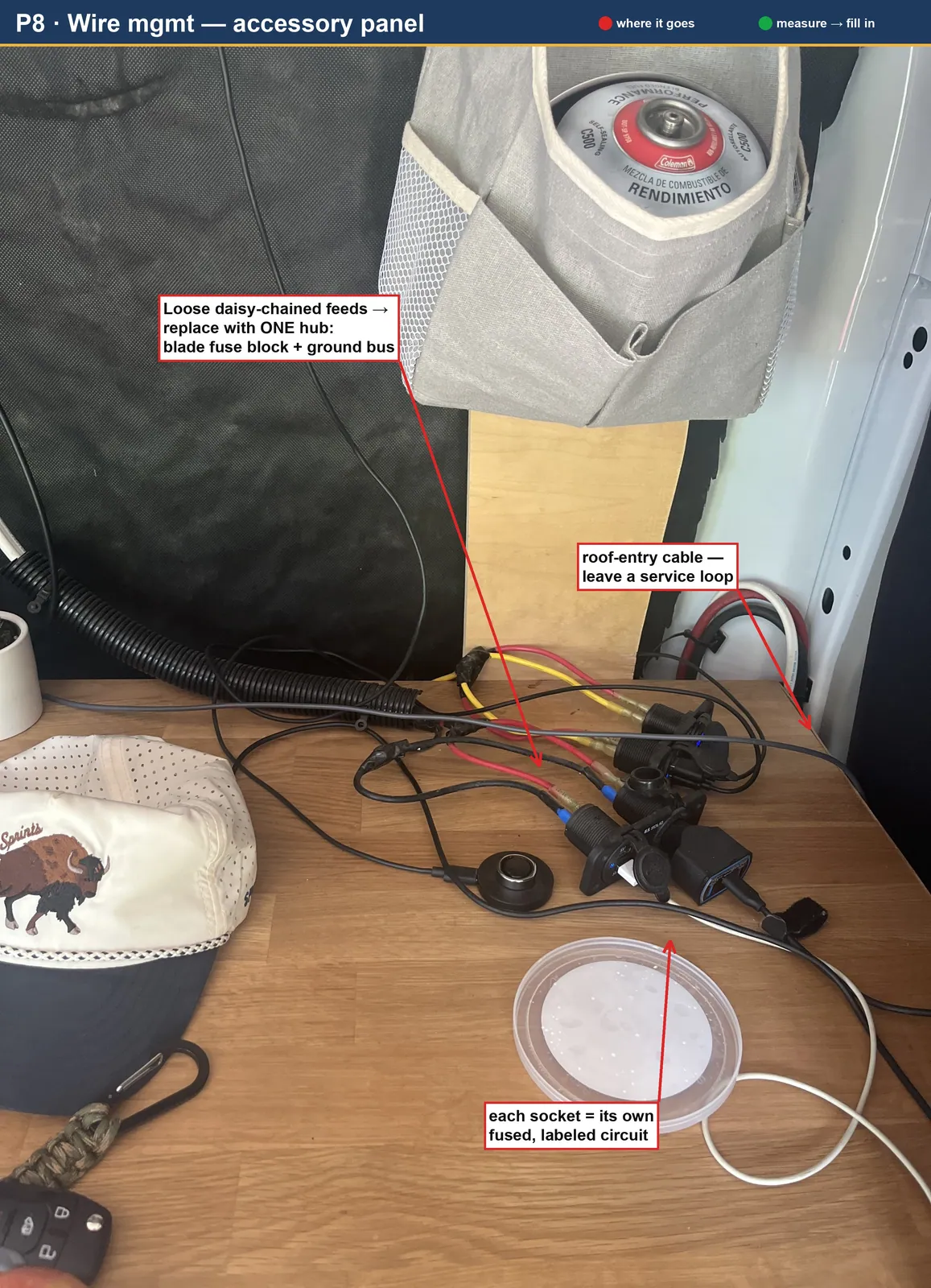

12V DC

All combinations need to be in parallel (same voltage, varying current).

120v AC:

• 2x 120V AC adapters (1 by driver seat at end of kitchen and 1 by bed opposite side)
• 1x in garage

Starter Battery:

• Grounding to driver seat
• Positive to driver seat

use d-ring and anti seize dielectric grease

Best practice is to clean paint off metal and through bolt lug with top lock nut & washer. Then spray with clear acrylic to reduce chance of corrosion.

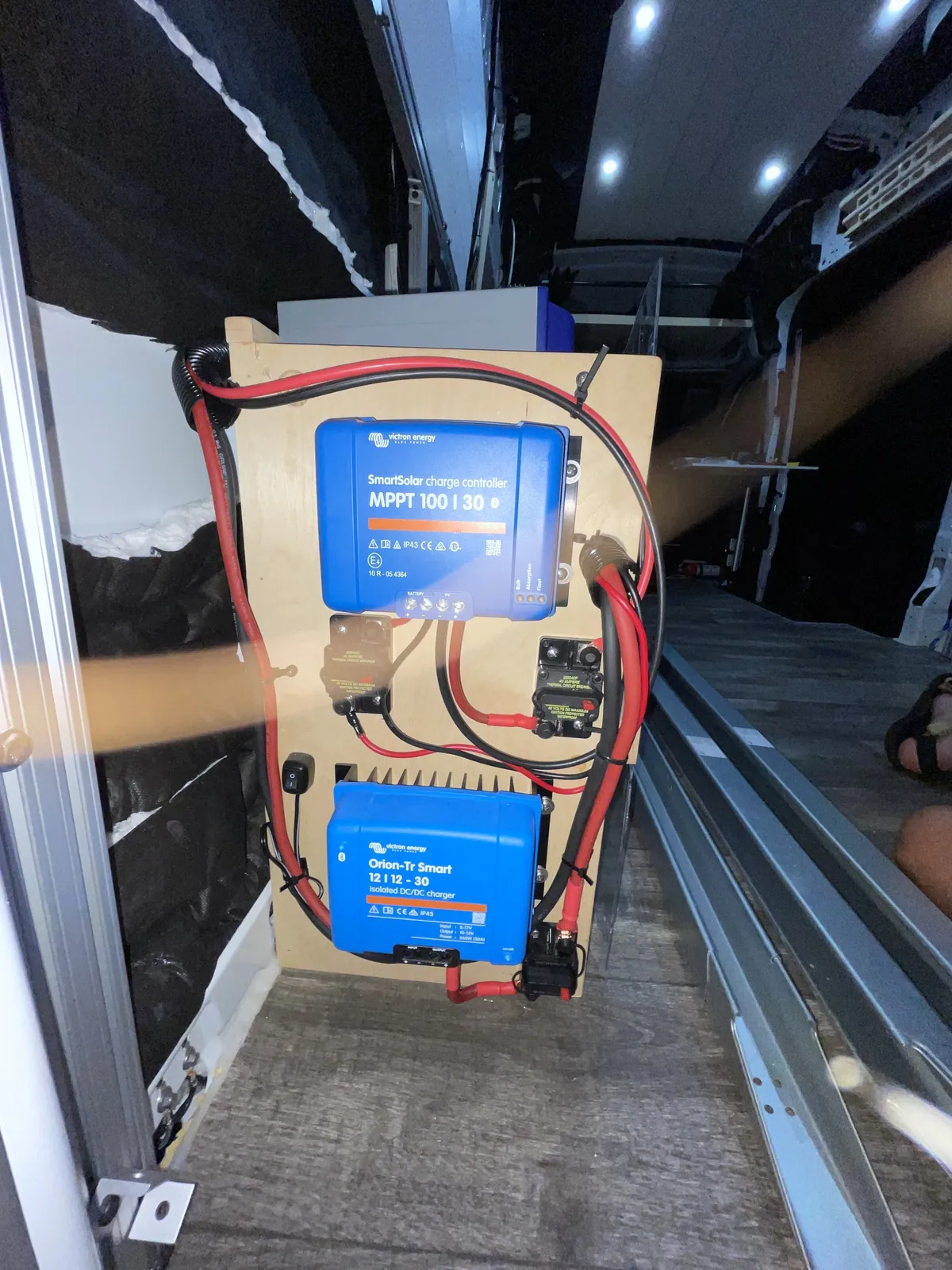

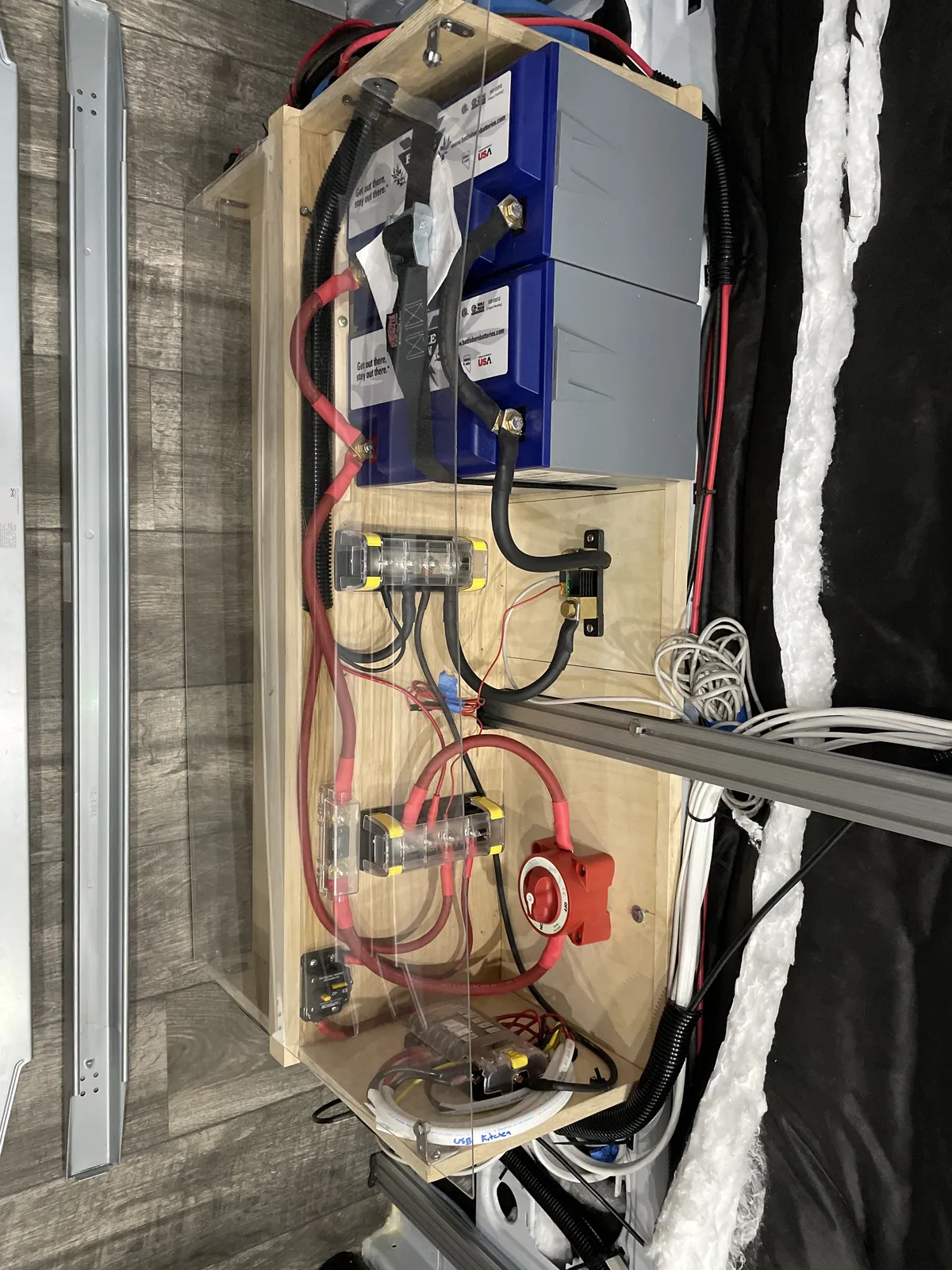

Victron DC-DC Battery Charger:

• Requires a 6 AWG (maybe use a "power post" to step down from 4 AWG to 6

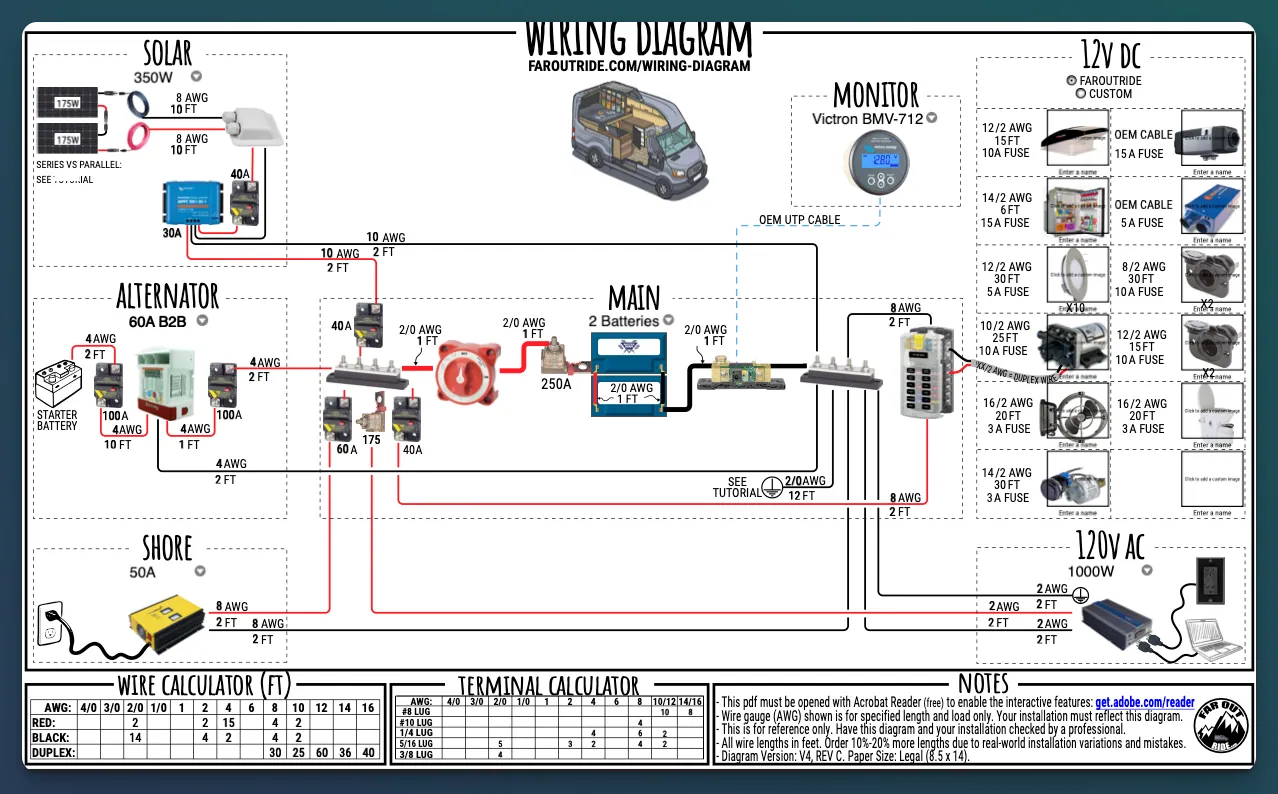

Wiring-Diagram-V4-REV-C1-dphwpu.pdf
