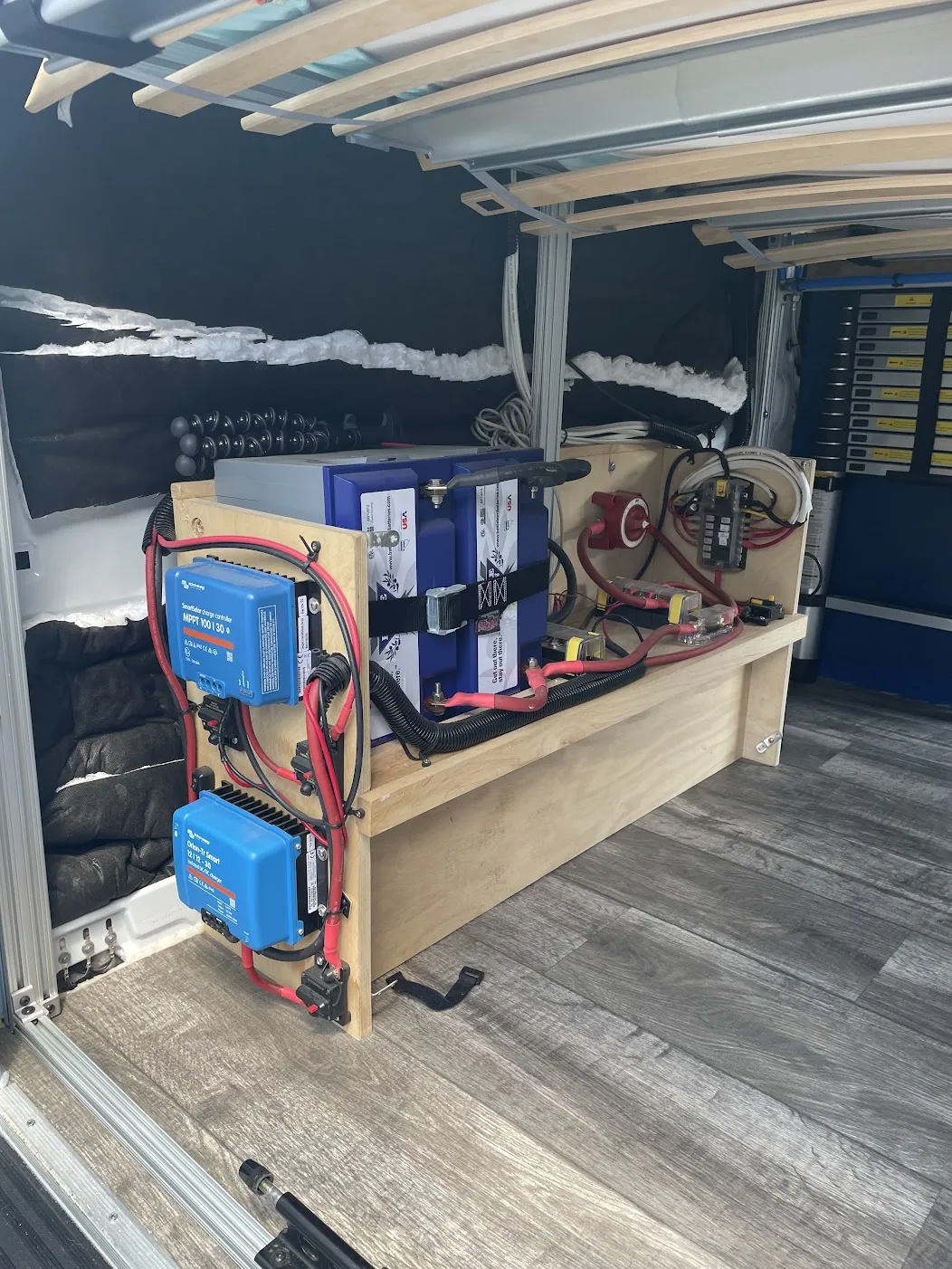

Electrical Panel
StatusDone
CategoryElectricity
Time14 hours
DateApril 2021
ToDO:
- Plexiglass cover
- L brackets
- hex bolts & nuts :)
12V DC circuits
| Item | Location | AWG | Fuse |
|---|---|---|---|
| 4x Puck lights ceiling lights (/w dimmer switch) | Ceiling | 12/2 | 5A |
| 2x led garage lights (/w Switch in Garage) | Garage | 12/2 | 5A |
| TF130 Fridge | Kitchen | 14/2 | 10A |
| Maxxair Fan | Ceiling | 12/2 | 10A |
| Bed Fan (Siroccio) | Bedroom | 16/2 | 3A |
| Water pump | Garage | 10/2 | 10A |
| 4x 12v DC adapters (for USBs and Misc items) | 2x Bed (each side), Kitchen, Above cabin (for wifi booster & projector) | 10/2 | 15A |
| Webasto under passenger seat | Passenger Seat | 14 | 15A |
